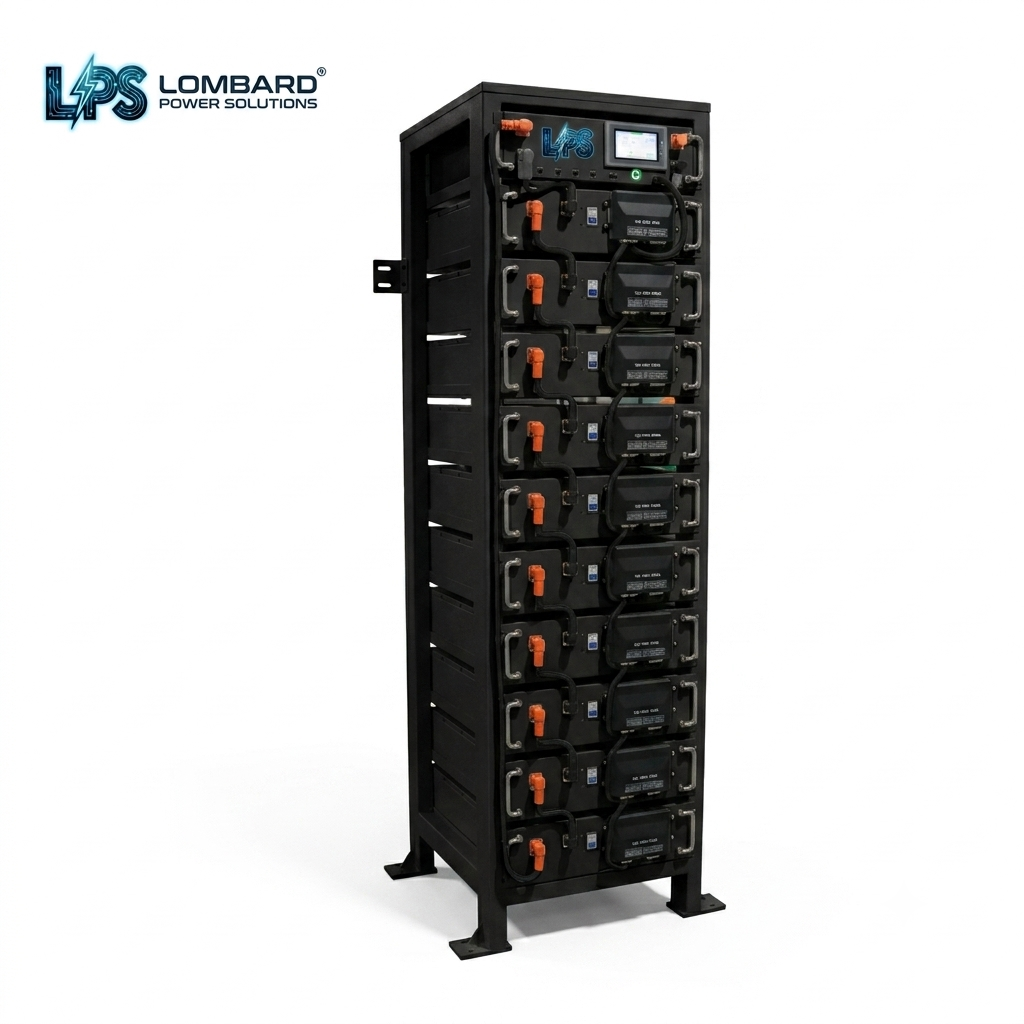

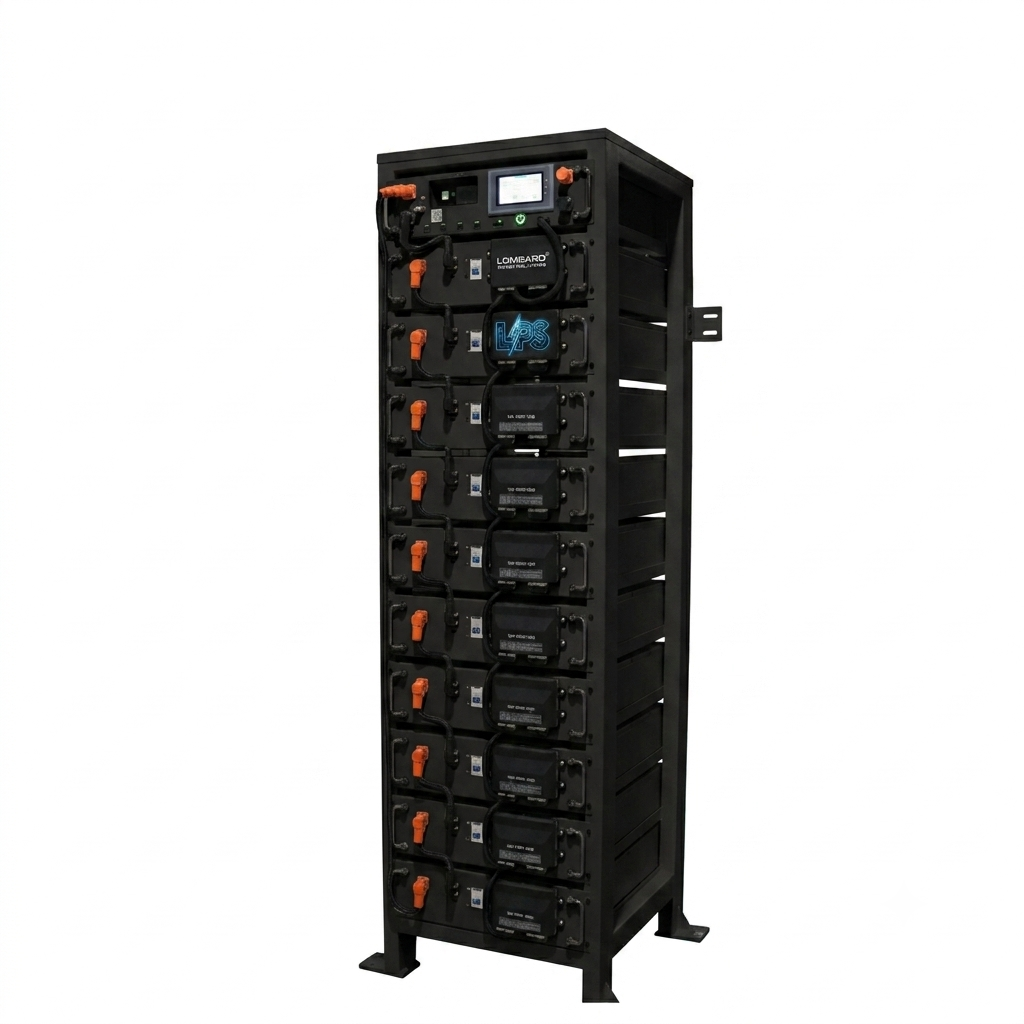

LPS-PW50-01 LiFePO4 Energy Storage System
"The advanced LPS-PW50-01 energy storage unit by Lombard Power Solutions features a 50Ah / 51.2V operating capacity with highly safe LiFePO4 technology. Designed to ensure a stable power supply for solar PV and backup systems, it comes equipped with a Smart Battery Management System (BMS) and a long lifespan exceeding 6,000 cycles."
Price on Request
Contact us for a custom quote
Ships from Chicago, IL · All 50 states · Worldwide
Estimated Arrival
2 to 8 weeks
Key Specifications
Model
LPS-PW50-01
Cycle Life
≥ 6000 cycles @ 25°C
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Certifications
CE, UN38.3, MSDS, IEC62619
Nominal Voltage
51.2V DC / 48V DC
Recommended DOD
80% - 90%
Product Description

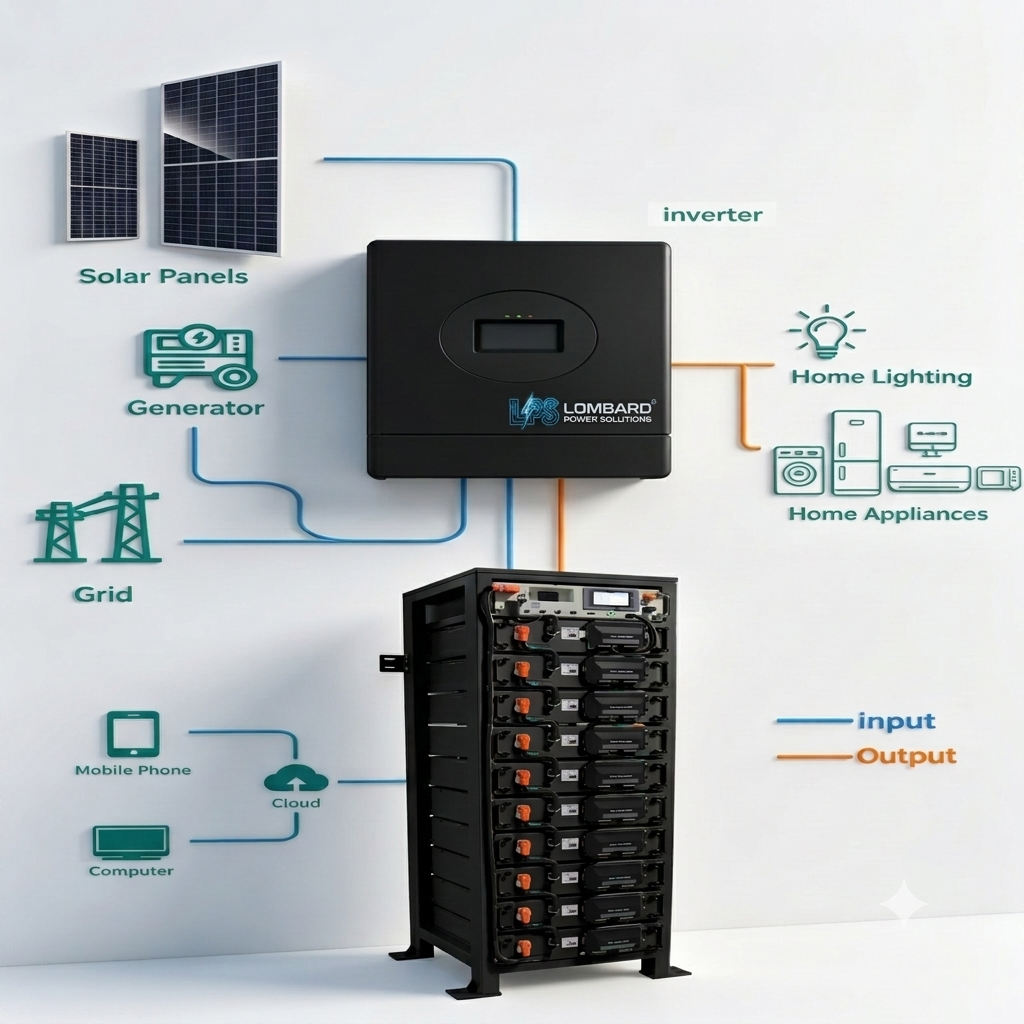

The LPS-PW50-01 unit from Lombard Power Solutions represents the latest generation in energy management and storage solutions. It is engineered to deliver stable and reliable performance for residential, commercial, and light industrial applications. This unit relies on Lithium Iron Phosphate (LiFePO4) cells, which boast the highest standards of safety, thermal, and chemical stability compared to traditional batteries. The LPS-PW50-01 serves as a core component for storing excess energy generated by Solar PV systems, or as an immediate Uninterruptible Power Supply (UPS) during grid outages. Additionally, it is integrated with a digital Smart BMS that provides real-time monitoring of voltage, current, and temperature to protect the cells and guarantee maximum operational life.
Features
- High-Safety LiFePO4 Technology: Provides excellent thermal and chemical stability, preventing the risks of overheating or combustion.
- Smart Battery Management System (BMS): Continuous monitoring and comprehensive protection against overcharging, deep discharging, overcurrent, and short circuits.
- Ultra-Long Cycle Life: Supports over 6,000 charge/discharge cycles at an 80% Depth of Discharge (DOD).
- High Energy Efficiency: Round-Trip Efficiency exceeds 95%, minimizing the loss of stored energy.
- Modular & Scalable Design: Can be easily connected in parallel to expand the total capacity based on the facility's power requirements.
- Broad Compatibility: Seamlessly integrates with a wide range of commercial and industrial inverters and solar charge controllers.
Applications
Technical Specifications
| Model | LPS-PW50-01 |
| Cycle Life | ≥ 6000 cycles @ 25°C |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Certifications | CE, UN38.3, MSDS, IEC62619 |
| Nominal Voltage | 51.2V DC / 48V DC |
| Recommended DOD | 80% - 90% |
| Nominal Capacity | 50Ah |
| Communication Ports | RS485 / CANbus / RS232 |
| Total Stored Energy | ~2.56 kWh |
| IP Rating (Enclosure) | IP54 / IP65 |
| Operating Temperature | Charge: 0~55°C | Discharge: -20~60°C |
